Custom Welded Bandsaw Blades

German Arntz coil stock, welded to any length in our Hamilton shop. Start with your saw or with what you're cutting.

Find blades for my saw Find blades by what I cut

Need a Custom Length?

You aren't restricted to standard sizes. Simply choose your blade type, enter your machine's exact loop length during configuration, and we will weld it.

Choosing the Right TPI

For optimal cutting performance and blade life, ensure that at least 3 teeth are engaged in your material at all times. Thinner materials require a higher TPI (e.g., 8/12), while thick solids require a lower TPI (e.g., 2/3).

Bandsaw blades

How do you want to find your blade?

Pick one. Every blade is welded to your exact length in Hamilton, Ontario.

Pick a brand above, or type your model.

Machine not listed? We weld to any loop length. Pick a blade line and enter your loop length, or contact us.

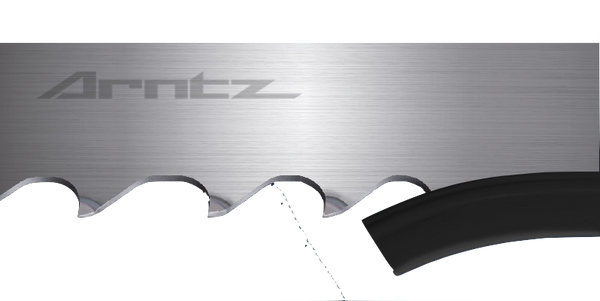

BLACK-LINE TC

CARBIDE-TIPPED

Aerospace & High-Alloy Materials

The Arntz BLACK-LINE TC is a carbide-tipped bandsaw blade with a robust triple chip geometry for hard and special alloys: tool steel, stainless steel, large solid rounds, squares and rectangular sections. Positive tooth angle and a hi-lo tooth design increase penetration while the carbide grade resists wear. Robust triple chip geometry for consistent performance Positive tooth angle with hi-lo tooth design for increased penetration High-resistance carbide grade for long blade life Available in 34mm, 41mm, 54mm and 67mm widths with 1.4/2, 2/3 and 3/4 TPI Custom loop-welded to your machine's exact length in Hamilton, Ontario

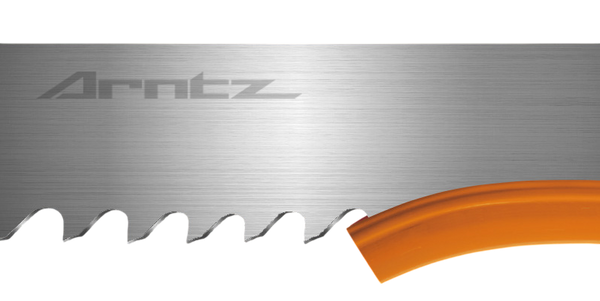

X-FIT

M42 BI-METAL

General / Multipurpose

The Arntz X-FIT M42 bi-metal bandsaw blade is engineered for structural steel and demanding cutting applications. Robust tooth geometry for excellent shock resistance on interrupted cuts Modified gullet design to reduce vibration Progressive tooth alignment produces a smooth surface with little burr Custom welded to your exact loop length at Graham Machine, Hamilton ON

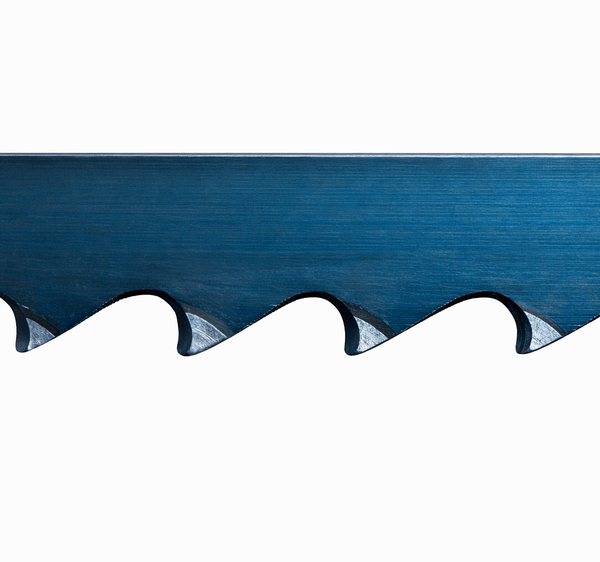

CS-1

CARBON

General / Multipurpose

The Arntz CS-1 is a German-engineered carbon bandsaw blade built for everyday workshop cutting. Featuring a flexible band back in pin-point quality with hardened teeth, the CS-1 delivers reliable cuts through mild steel, low-carbon steel, and non-ferrous metals. Available in widths from 3mm (1/8") to 32mm (1-1/4") with tooth pitches from 2 to 32 TPI. Standard tooth (0°) and hook tooth geometry options. Custom loop-welded to your exact blade length at our Hamilton, Ontario facility.

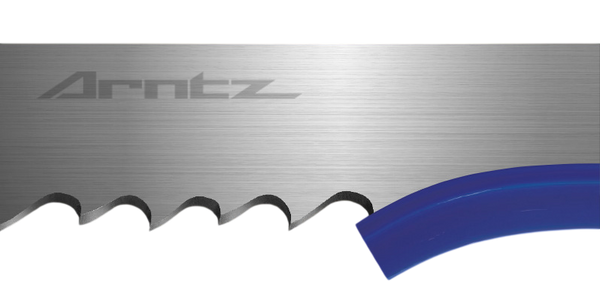

SPRINT PLUS

M42 BI-METAL

General / Multipurpose

The Arntz Sprint-Plus M42 bi-metal bandsaw blade is a versatile, all-purpose production blade engineered in Germany for consistent cutting performance across a wide range of materials and cross-sections. Classic and variable tooth geometry for solids, tubes, bundles, and profiles M42 high-speed steel tooth tips for long blade life and heat resistance Available in 20mm to 80mm widths with positive and neutral rake options Custom loop-welded to your exact length, ready to install Ideal for steel manufacturing, general fabrication, recycling, and foundry applications.

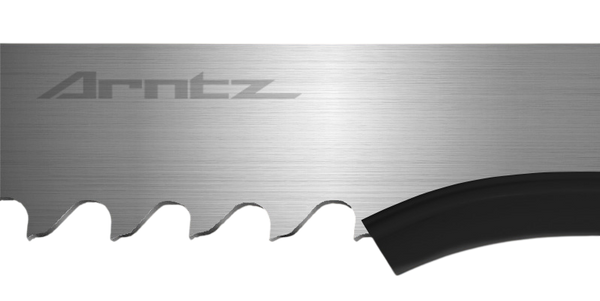

X-PRO MAX

M51 BI-METAL

Structural Steel & Profiles

Arntz X-PRO MAX M51 bi-metal bandsaw blade with extra-heavy set design for steel construction. Custom welded to your machine's exact loop length at our Hamilton, Ontario facility. Available in 54×1.60mm (2"×.063") and 67×1.60mm (2⅝"×.063") with 2/3 and 3/4 TPI.

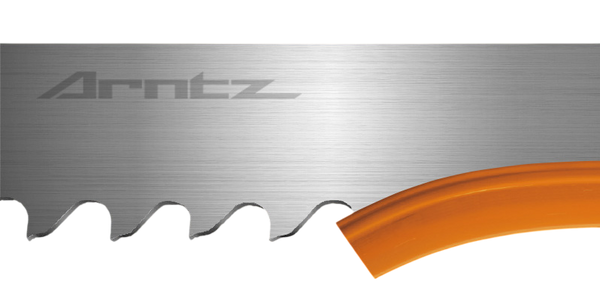

X-PRO

M51 BI-METAL

Structural Steel & Profiles

The Arntz X-PRO (Article 557) is a premium M51 bi-metal bandsaw blade engineered for cutting structural steel profiles, solid rounds, square bar stock, special alloy steels, bundled tubing, and structural beams. Made in Germany with a powder metallurgically produced M51 high-speed steel cutting edge on a specially alloyed spring steel backing. M51 HSS Cutting Edge: maintains hardness at higher cutting temperatures than standard M42, preventing premature tip dulling Enhanced Wear Resistance: M51 edge creates exceptional hardness for longer blade life in heavy structural and fabrication cutting Improved Edge Retention: consistent, high-quality cuts over extended periods with fewer blade changes Versatile Profile Cutting: handles solid rounds, squares, special alloys, bundled tubes, beams, channels, and angles Available in 41mm, 54mm, and 67mm widths with 2/3 and 3/4 TPI variable tooth pitch. Every blade is custom loop-welded to your machine's exact length at our Hamilton, Ontario facility. Call 1-800-957-2690 for expert blade selection advice.

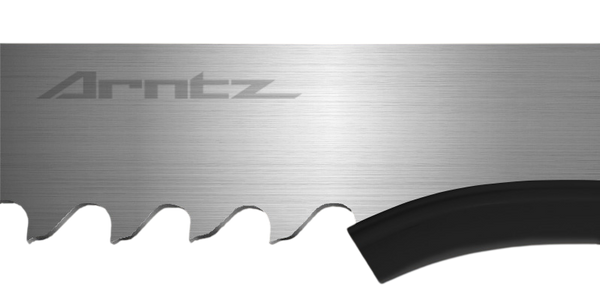

X-FIT MAX

M42 BI-METAL

Structural Steel & Profiles

The Arntz X-FIT MAX is the M42 bi-metal bandsaw blade for heavy structural steel: wide-flange beams, heavy-walled sections, rebar and bundle cutting with high chip volume. An extra wide tooth set prevents jamming in material with high residual stress, and the stable tooth shape keeps the blade alive through chip nests. The powerhouse for machining large profiles and beams Extra wide set prevents jamming in materials with high residual stress Extended blade life from a robust tooth design, even in bundle cutting Available in 34mm, 41mm, 54mm and 67mm widths with 2/3, 3/4 and 4/6 TPI Custom loop-welded to your machine's exact length in Hamilton, Ontario

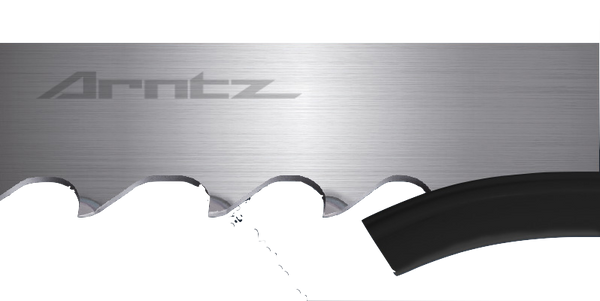

BLACK LINE S

CARBIDE-TIPPED

Aerospace & High-Alloy Materials

The Arntz Black Line S is a carbide-tipped bandsaw blade that delivers carbide performance on every machine type, including saws without high band speeds. Modified triple chip geometry combined with set teeth gives a stable, straight cut in stainless steel, tool steel, special alloys and large solid sections. Carbide-tipped teeth for long life in hard and abrasive materials Modified triple chip geometry combined with set teeth Wide kerf for excellent cut stability Robust performance in all machine types Available in 34mm, 41mm, 54mm and 67mm widths with 1.4/2, 2/3 and 3/4 TPI Custom loop-welded to your machine's exact length in Hamilton, Ontario

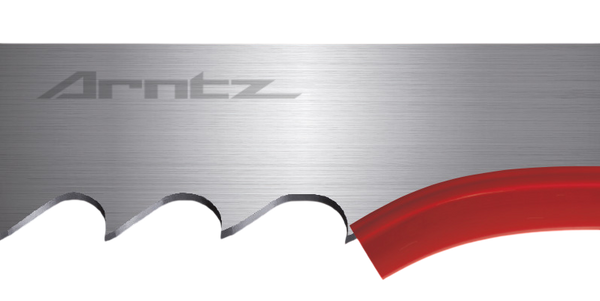

SPRINT PRO

M51 BI-METAL

Aerospace & High-Alloy Materials

Arntz SPRINT-PRO (Article 531) M51 bi-metal bandsaw blade with classic tooth geometry for difficult materials. Custom welded to your machine's exact loop length at our Hamilton, Ontario facility. Available in 6 widths from 27×0.90mm (1"×.035") to 80×1.60mm (3"×.063") with variable tooth pitch options.

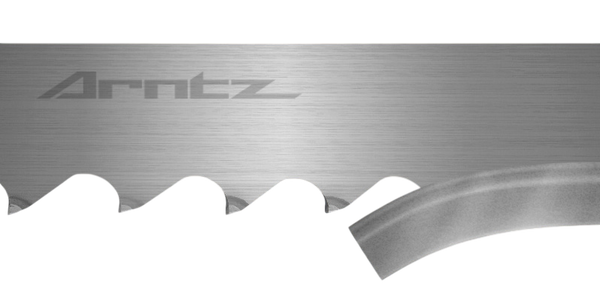

SILVER-LINE

CARBIDE-TIPPED

Non-Ferrous/Special Materials

The Arntz SILVER-LINE is a carbide-tipped bandsaw blade with a complex multi-chip geometry built for the highest requirements: fast band speeds, non-ferrous and special materials, stainless steel and large solid sections where cut rate matters. Multi-chip carbide tooth design for high cutting performance Developed for fast band speeds on production saws High positive rake angle to increase penetration Available in 27mm, 34mm, 41mm and 54mm widths with 2/3 and 3/4 TPI Custom loop-welded to your machine's exact length in Hamilton, Ontario

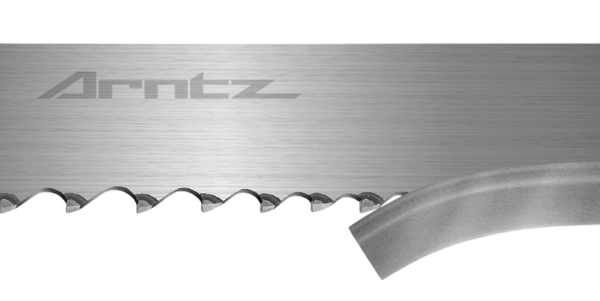

SILVER-LINE N

CARBIDE-TIPPED

Non-Ferrous/Special Materials

The Arntz SILVER-LINE N is the carbide-tipped bandsaw blade for surface hardened workpieces. A negative rake angle lets the carbide teeth enter case-hardened, induction-hardened and nitrided surfaces without chipping, then the multi-chip geometry carries the cut through the softer core. Special blade with negative rake angle for hardened surfaces Multi-chip carbide geometry for highest cutting performance Available in 27mm, 34mm, 41mm and 54mm widths with 2/3 and 3/4 TPI Custom loop-welded to your machine's exact length in Hamilton, Ontario

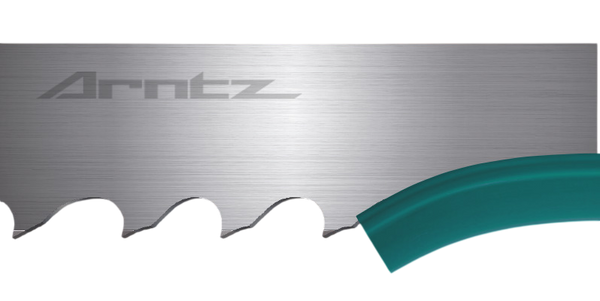

X-CELL PRO

M51 BI-METAL

Aerospace & High-Alloy Materials

The Arntz X-CELL PRO is a high-end M51 bi-metal bandsaw blade for work-hardening and high-alloy materials: stainless steel, special alloys, large solid rounds and squares, and heavy-walled tube. The aggressive tooth geometry keeps penetrating where standard M42 blades glaze over. M51 high-speed steel tooth tips for wear resistance and edge retention at high cutting temperatures Aggressive tooth geometry improves penetration in work-hardening applications Variable set and hi-lo tooth pattern for added penetration with less vibration Available in 34mm, 41mm, 54mm and 67mm widths with 2/3 and 3/4 TPI Custom loop-welded to your machine's exact length in Hamilton, Ontario

Need Help Choosing the Right Blade?

Tell us your material, machine model, and cutting application, and our blade specialists will recommend the correct blade type, TPI, and weld length for optimal performance.

Hamilton Facility Supporting fabrication shops and manufacturers across Canada and around the world.

Blade Type

Correct TPI

Weld Lengths
