What widths and tooth pitches are available for the CS-1?

The CS-1 is available in widths from 3×0.65mm (1/8"×.025") up to 32×1.10mm (1¼"×.042"). Tooth pitch options range from 2 to 32 TPI, with both standard tooth (0° rake) and hook tooth geometry.

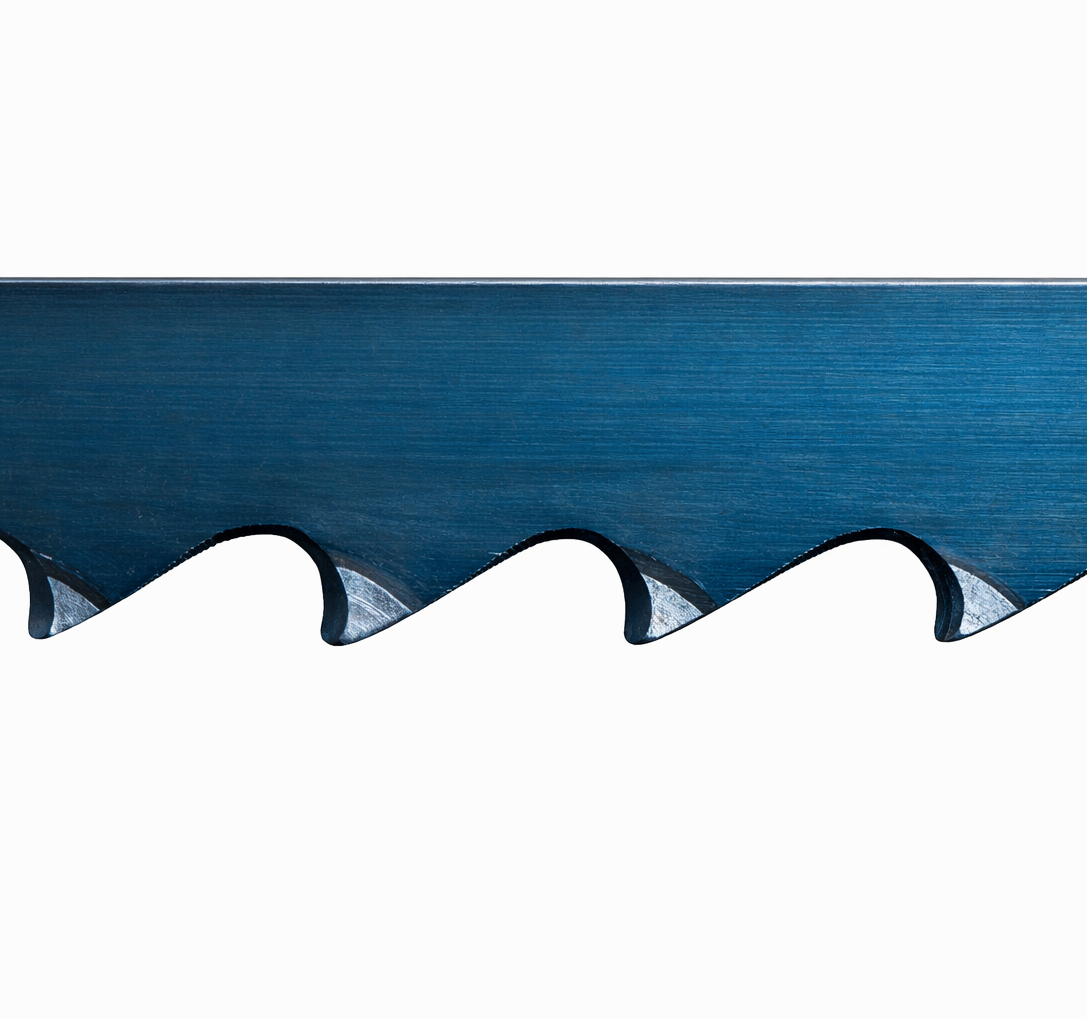

Arntz CS-1 carbon bandsaw blade tooth geometry close-up showing hardened teeth

Arntz CS-1 carbon bandsaw blade installed on workshop bandsaw machine

Custom welded Arntz CS-1 carbon bandsaw blade coil at Graham Machine Hamilton Ontario

Arntz CS-1 carbon bandsaw blade specifications chart showing available widths and TPI options

Bundled steel tubing — ideal cutting application for Arntz X-PRO M51 bi-metal bandsaw blade

1 / 5

German Engineered Carbon

ARNTZCS-1

Q: Do you custom weld bandsaw blades to any length?

Yes. Every Arntz CS-1 blade is custom loop-welded in-house at our Hamilton, Ontario facility to your machine's exact loop length. We do not sell stock lengths — each blade is made to order.

Q: What is the difference between standard tooth and hook tooth?

Standard tooth (0° rake angle) provides controlled, smooth cuts for thin sections and harder materials. Hook tooth has a positive rake angle that cuts more aggressively, clearing chips faster — better for softer materials and larger cross-sections.

Q: When should I choose a CS-1 carbon blade over a bi-metal blade?

The CS-1 is the right choice for cutting mild steel and non-ferrous materials in a workshop or maintenance setting at a cost-effective price. For higher-volume production, harder materials, or longer blade life, step up to a bi-metal blade like the Sprint-Plus or X-FIT.

Q: Do you ship outside of Ontario?

Yes. While based in Hamilton with most customers in Ontario (GTA, Niagara, Kitchener-Waterloo, London, Windsor, Ottawa), we ship custom-welded bandsaw blades across Canada.

Everyday workshop blade

The Arntz CS-1 is a carbon bandsaw blade built for everyday workshop use — a flexible band back in pin-point quality with hardened teeth. Reliable and cost-effective, the CS-1 handles mild steel and general fabrication tasks with consistent results. Standard and hook tooth geometry options cover a wide TPI range from 2 to 32, adapting to different material sizes and cut requirements.

Configure & Order

Custom welded in-house at our Hamilton facility. Enter your machine's exact loop length.

Blade Width / Thickness

Tooth Pitch (TPI)

Total Loop Length

Quantity

Enter blade length for pricing

Why Shops Choose the CS-1

Flexible Band Back

Pin-point quality flexible band back absorbs vibration and tracks true on smaller machines — ideal for vertical and horizontal workshop saws.

Wide TPI Range

Available from 2 to 32 TPI with standard (0°) and hook tooth options, covering everything from coarse roughing to fine finishing cuts.

Hardened Teeth

Hardened tooth tips on a carbon steel body deliver reliable cuts through mild steel and non-ferrous materials at an economical price point.

Economy Choice

The most cost-effective blade in the Arntz lineup — perfect for maintenance shops, hobbyists, and general-purpose workshop cutting.

Built for Everyday Workshop Cutting

Application Tier

The CS-1 is the economy choice for workshops, maintenance departments, and hobbyists. A flexible carbon band back with hardened teeth handles mild steel and general fabrication tasks reliably. Standard tooth (0°) and hook tooth options let you match the blade to your material and cut type.

Mild Steel & Low-Carbon Steel
Non-Ferrous Metals
General Workshop Materials
Maintenance & Repair Cuts

Specification Detail

Blade Type Carbon

Tooth Type Hardened Carbon Steel

Band Back Flexible Pin-Point Quality

Available Widths 3mm, 5mm, 6mm, 8mm, 10mm, 13mm, 16mm, 19mm, 25mm, 32mm

Tooth Pitch Options 2, 3, 4, 6, 8, 10, 14, 18, 24, 32 TPI

Tooth Geometry Standard tooth (0°) and Hook tooth

Weld Type Custom loop — welded in-house

Origin Engineered & manufactured in Germany

Custom Bandsaw Blades — Hamilton, Ontario

Graham Machine Sales & Service Inc. is Hamilton's trusted source for industrial bandsaw blades, machine service, and custom blade welding. Every Arntz CS-1 blade we sell is custom loop-welded in our Hamilton facility to your machine's exact specifications — no stock lengths, no compromises.

Industries We Serve

Steel service centres, structural fabrication shops, metal recyclers, machine shops, and manufacturing plants across Ontario and the Greater Hamilton Area. From single-piece prototype cuts to high-volume production sawing.

More Than Blades

We supply, install, and service industrial band saw machines. Whether you need a replacement blade, a full machine overhaul, or expert guidance on blade selection for your specific material — our Hamilton-based team has you covered.

Serving All of Ontario

Located in Hamilton with service across the GTA, Niagara, Kitchener-Waterloo, London, and beyond. We ship custom-welded bandsaw blades province-wide with fast turnaround.

Frequently Asked Questions

What materials can the Arntz CS-1 bandsaw blade cut?

The CS-1 is designed for mild steel, low-carbon steel, and non-ferrous metals. It's suited for everyday workshop cutting, maintenance tasks, and general fabrication where economy and reliability matter more than high-performance cutting speed.

What is a carbon bandsaw blade?

A carbon bandsaw blade uses hardened carbon steel teeth on a flexible band back. Unlike bi-metal blades (which have M42 high-speed steel tips), carbon blades are more economical and work well for lighter-duty cutting. The CS-1's flexible pin-point quality band back tracks true on smaller workshop saws.

Do you custom weld bandsaw blades to any length?

Yes. Every Arntz CS-1 blade we sell is custom loop-welded in-house at our Hamilton, Ontario facility to your machine's exact loop length. We do not sell stock lengths — each blade is made to order. Just enter your machine's loop length in inches or millimetres in the configurator above, and we'll weld it to spec.

What widths and tooth pitches are available?

The CS-1 is available in widths from 3×0.65mm (1/8"×.025") up to 32×1.10mm (1¼"×.042"). Tooth pitch options range from 2 TPI up to 32 TPI, with both standard tooth (0° rake) and hook tooth geometry available depending on width.

What is the difference between standard tooth and hook tooth?

Standard tooth (0° rake angle) provides a straight tooth face for controlled, smooth cuts — good for thin sections and harder materials. Hook tooth has a positive rake angle that cuts more aggressively, clearing chips faster — better for softer materials and larger cross-sections. Call us at 1-800-957-2690 for help choosing the right option.

When should I choose a CS-1 carbon blade over a bi-metal blade?

The CS-1 is the right choice when you're cutting mild steel and non-ferrous materials in a workshop or maintenance setting and want a cost-effective blade. For higher-volume production, harder materials, or longer blade life, step up to a bi-metal blade like the Sprint-Plus or X-FIT.

How long does a custom blade order take?

Most custom-welded blades ship within 1–2 business days from our Hamilton facility. We keep Arntz blade coil stock on hand in all standard widths, so turnaround is fast. For urgent needs, call us directly and we'll do our best to accommodate same-day welding.

Do you service and repair band saw machines?

Yes. Graham Machine Sales & Service provides full band saw machine service, maintenance, and repair across Ontario. Whether you need a blade guide alignment, wheel replacement, hydraulic repair, or a complete machine overhaul, our technicians handle it. We also sell new and used industrial band saw machines.

Do you ship outside of Ontario?

Yes. While we're based in Hamilton and the majority of our customers are in Ontario (GTA, Niagara, Kitchener-Waterloo, London, Windsor, Ottawa), we ship custom-welded bandsaw blades across Canada. Contact us for shipping details and lead times to your location.

Need Help Choosing the Right Blade?

Tell us your material, machine model, and cutting application, and our blade specialists will recommend the correct blade type, TPI, and weld length for optimal performance.
