What widths and tooth pitches are available for the X-PRO MAX?

The X-PRO MAX is available in two width/thickness combinations: 54x1.60mm (2" x .063") and 67x1.60mm (2-5/8" x .063"). Both widths offer 2/3 and 3/4 TPI variable tooth pitch.

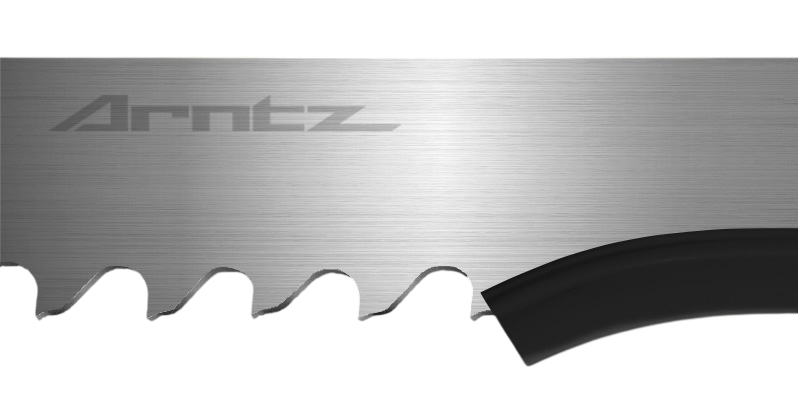

Arntz X-PRO MAX M51 bi-metal bandsaw blade extra-heavy set tooth close-up

Industrial bandsaw blade coils at Graham Machine Hamilton Ontario

Custom welded Arntz X-CELL bandsaw blades in stock at Graham Machine Sales service facility Hamilton ON

1 / 3

German Engineered M51 Bi-Metal

ARNTZX-PRO MAX

Q: What is the difference between the X-PRO and the X-PRO MAX?

Both blades use M51 high-speed steel tooth tips. The X-PRO has a standard set for general structural steel and fabrication, while the X-PRO MAX has an extra-heavy set designed for steel construction — wide-flange beams and heavy-walled sections. The extra-heavy set provides more aggressive cutting action, better chip removal, and reduces pinching risk. The X-PRO comes in 4 width options while the X-PRO MAX is available in 54×1.60mm and 67×1.60mm.

Q: Why does the extra-heavy set matter for structural beams?

Large structural beams contain significant residual stress from the rolling process. The extra-heavy set creates a wider kerf, preventing the blade from getting pinched as material shifts during cutting — reducing blade breakage and downtime.

Q: Do you custom weld X-PRO MAX bandsaw blades to any length?

Yes. Every Arntz X-PRO MAX blade is custom loop-welded in-house at our Hamilton, Ontario facility to your machine's exact loop length. We do not sell stock lengths — each blade is made to order.

Q: Can you help me select the right blade for my machine and material?

Absolutely. Call 1-800-957-2690 or use our contact form. Tell us your machine make/model, materials you're cutting, and production volume, and we'll recommend the optimal blade width, tooth pitch, and feed/speed settings.

Q: Do you ship outside of Ontario?

Yes. While based in Hamilton with most customers in Ontario (GTA, Niagara, Kitchener-Waterloo, London, Windsor, Ottawa), we ship custom-welded bandsaw blades across Canada.

M51 bi-metal blade with extra-heavy set for steel construction

The Arntz X-PRO MAX combines M51 high-speed steel with an extra-heavy set design for steel construction applications. The extra-heavy set, combined with M51's hardness, enhances the blade's ability to withstand higher stresses and resist wear. Superior heat resistance from the M51 steel's high-temperature performance makes it the go-to blade for heavy-duty structural beam cutting — wide-flange beams, heavy-walled sections, and large profiles.

Configure & Order

Custom welded in-house at our Hamilton facility. Enter your machine's exact loop length.

Blade Width / Thickness

Tooth Pitch (TPI)

Total Loop Length

Quantity

Enter blade length for pricing

Why Fabricators Choose the X-PRO MAX

Higher Stress & Wear Resistance

The extra-heavy set design, combined with M51's hardness, enhances the blade's ability to withstand higher stresses and resist wear during demanding steel construction cutting.

Superior Heat Resistance

Superior heat resistance for heavy-duty cuts due to the M51 steel's high-temperature performance. The powder metallurgically produced M51 maintains hardness at extreme cutting temperatures.

Better Chip Removal

The X-PRO extra-heavy set allows for a more aggressive cutting action, providing better chip removal and reducing the risk of pinching in materials with high residual stress.

Steel Construction Specialist

Purpose-built for steel construction — wide-flange beams and heavy-walled structural sections where standard-set blades struggle with chip clearance and residual stress.

Built for Steel Construction

Application Tier

The X-PRO MAX is built for steel construction. The extra-heavy set design, combined with M51's hardness, enhances the blade's ability to withstand higher stresses and resist wear. The M51 steel's high-temperature performance delivers superior heat resistance for heavy-duty cuts, while the extra-heavy set allows for a more aggressive cutting action — providing better chip removal and reducing the risk of pinching in wide-flange beams and heavy-walled structural sections.

COMPATIBLE MATERIALS

Wide-Flange Beams (W-shapes)
Heavy-Walled Structural Sections
Large Structural Steel Profiles
High Residual Stress Materials

Specification Detail

Blade Type Bi-Metal (M51 HSS)

Tooth Material M51 High Speed Steel

Backing Material Special Alloyed Spring Steel

Set Design Extra-Heavy Set (WS Option)

Available Widths 54×1.60mm (2"×.063"), 67×1.60mm (2⅝"×.063")

Tooth Pitch Options 2/3, 3/4 TPI (variable)

Set Angle 5°–7°

Weld Type Custom loop — welded in-house

Origin Engineered & manufactured in Germany

Custom Bandsaw Blades — Hamilton, Ontario

Graham Machine Sales & Service Inc. is Hamilton's trusted source for industrial bandsaw blades, machine service, and custom blade welding. Every Arntz X-PRO MAX blade we sell is custom loop-welded in our Hamilton facility to your machine's exact specifications — no stock lengths, no compromises.

Industries We Serve

Steel service centres, structural fabrication shops, bridge and building contractors, metal recyclers, and heavy manufacturing plants across Ontario and the Greater Hamilton Area. The X-PRO MAX is especially popular with shops cutting large wide-flange beams and heavy structural sections.

More Than Blades

We supply, install, and service industrial band saw machines. Whether you need a replacement blade, a full machine overhaul, or expert guidance on blade selection for your specific material — our Hamilton-based team has you covered.

Serving All of Ontario

Located in Hamilton with service across the GTA, Niagara, Kitchener-Waterloo, London, and beyond. We ship custom-welded bandsaw blades province-wide with fast turnaround.

Frequently Asked Questions

What is the X-PRO MAX designed to cut?

The X-PRO MAX is designed specifically for cutting heavy structural steel profiles — wide-flange beams, heavy-walled sections, and large structural shapes where high residual stress causes standard blades to bind or jam. Its extra-heavy set and M51 cutting edge make it the go-to blade for steel service centres handling large beams.

What is the difference between the X-PRO and the X-PRO MAX?

Both blades use M51 high-speed steel tooth tips. The key difference is the set design: the X-PRO has a standard set for general structural steel and fabrication cutting, while the X-PRO MAX has an extra-heavy set designed specifically for steel construction — wide-flange beams and heavy-walled sections with high residual stress. The extra-heavy set allows for more aggressive cutting action, providing better chip removal and reducing the risk of pinching. The X-PRO also comes in more width options (41mm, 54mm, 67mm) while the X-PRO MAX is available in 54×1.60mm and 67×1.60mm only.

Why does the extra-heavy set matter for structural beams?

Large structural beams (especially wide-flange I-beams) contain significant residual stress from the rolling process. As you cut through the beam, the material can shift and pinch the blade. The X-PRO extra-heavy set allows for a more aggressive cutting action, providing better chip removal and reducing the risk of pinching. This reduces blade breakage, downtime, and wasted material.

What widths and tooth pitches are available?

The X-PRO MAX is available in two width/thickness combinations: 54×1.60mm (2"×.063") and 67×1.60mm (2⅝"×.063"). Both widths offer 2/3 and 3/4 TPI variable tooth pitch. Use 2/3 TPI for larger cross-sections and 3/4 TPI for smaller profiles.

Do you custom weld bandsaw blades to any length?

Yes. Every Arntz X-PRO MAX blade we sell is custom loop-welded in-house at our Hamilton, Ontario facility to your machine's exact loop length. We do not sell stock lengths — each blade is made to order.

How long does a custom blade order take?

Most custom-welded blades ship within 1–2 business days from our Hamilton facility. We keep Arntz blade coil stock on hand in all standard widths, so turnaround is fast. For urgent production needs, call us directly and we'll do our best to accommodate same-day welding.

Do you service and repair band saw machines?

Yes. Graham Machine Sales & Service provides full band saw machine service, maintenance, and repair across Ontario. Whether you need a blade guide alignment, wheel replacement, hydraulic repair, or a complete machine overhaul, our technicians handle it. We also sell new and used industrial band saw machines.

Can you help me select the right blade for my machine and material?

Absolutely. Call us at 1-800-957-2690 or use the contact form on our site. Tell us your machine make/model, the materials you're cutting (type, grade, and cross-section), and your production volume. We'll recommend the optimal blade width, tooth pitch, and feed/speed settings.

Do you ship outside of Ontario?

Yes. While we're based in Hamilton and the majority of our customers are in Ontario (GTA, Niagara, Kitchener-Waterloo, London, Windsor, Ottawa), we ship custom-welded bandsaw blades across Canada. Contact us for shipping details and lead times to your location.

Need Help Choosing the Right Blade?

Tell us your material, machine model, and cutting application, and our blade specialists will recommend the correct blade type, TPI, and weld length for optimal performance.
