Arntz Engineered Cutting Systems
Custom Welded Bandsaw Blades
We stock premium German-made coils and weld to any length right here in our facility. Browse our catalog below to find the specific tooth geometry and material grade for your exact application.
Need a Custom Length?
You aren't restricted to standard sizes. Simply choose your blade type, enter your machine's exact loop length during configuration, and we will weld it.
Choosing the Right TPI
For optimal cutting performance and blade life, ensure that at least 3 teeth are engaged in your material at all times. Thinner materials require a higher TPI (e.g., 8/12), while thick solids require a lower TPI (e.g., 2/3).
BLACK-LINE TC
CARBIDE-TIPPEDAerospace & High-Alloy Materials
Robust Triple chip geometry for consistent performance
Positive tooth angle with hi-lo tooth design for increased penetration
Carbide grade with high resistance
CS-1
CARBONGeneral / Multipurpose
The Arntz CS-1 is a German-engineered carbon bandsaw blade built for everyday workshop cutting. Featuring a flexible band back in pin-point quality with hardened teeth, the CS-1 delivers reliable cuts through mild steel, low-carbon steel, and non-ferrous metals. Available in widths from 3mm (1/8") to 32mm (1-1/4") with tooth pitches from 2 to 32 TPI. Standard tooth (0°) and hook tooth geometry options. Custom loop-welded to your exact blade length at our Hamilton, Ontario facility.

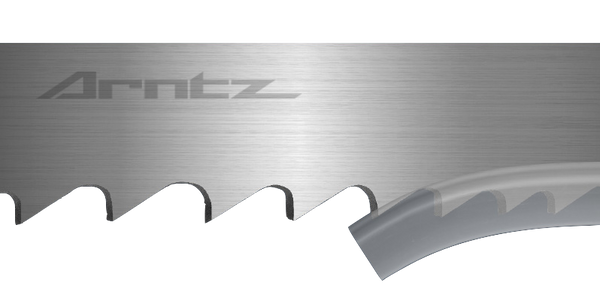

PAL-CUT
M42Non-Ferrous/Special Materials
The rustic for repair and dismantling of wooden pallets
Special tooth geometry guarantees constant performance while sawing through nails and staples

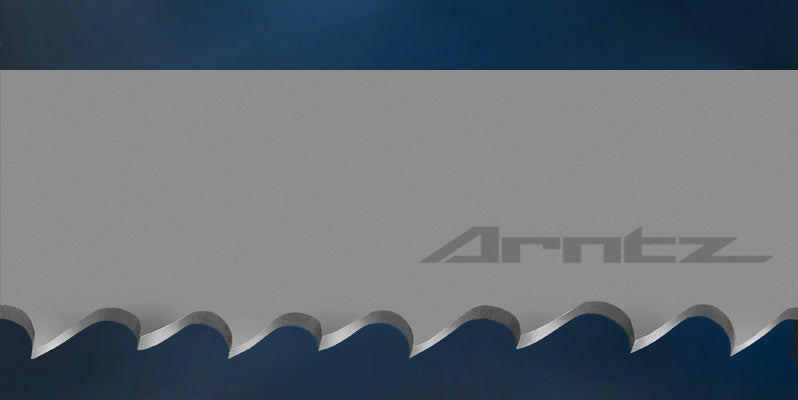

SPRINT PLUS
M42 BI-METALGeneral / Multipurpose
The Arntz Sprint-Plus M42 bi-metal bandsaw blade is a versatile, all-purpose production blade engineered in Germany for consistent cutting performance across a wide range of materials and cross-sections.
Classic and variable tooth geometry for solids, tubes, bundles, and profiles
M42 high-speed steel tooth tips for long blade life and heat resistance
Available in 20mm to 80mm widths with positive and neutral rake options
Custom loop-welded to your exact length — ready to install
Ideal for steel manufacturing, general fabrication, recycling, and foundry applications.

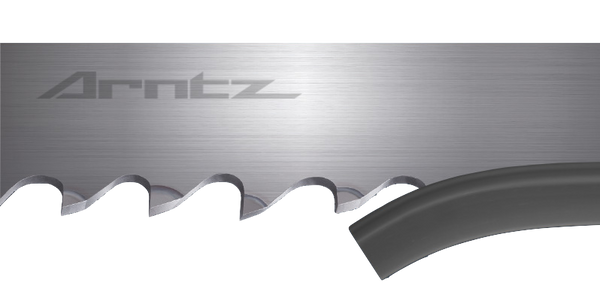

STONE-LINE S
CARBIDE-TIPPEDStone Applications
The confident choice for softer construction materials like aerated concrete, insulation boards, and insulating materials
Set Carbide Tipped Band Saw Blade with wide clearence reduces jamming and buildup of deposits
X-FIT
M42 BI-METALGeneral / Multipurpose
The Arntz X-FIT M42 bi-metal bandsaw blade is engineered for structural steel and demanding cutting applications.
Robust tooth geometry for excellent shock resistance on interrupted cuts
Modified gullet design to reduce vibration
Progressive tooth alignment produces a smooth surface with little burr
Custom welded to your exact loop length at Graham Machine, Hamilton ON

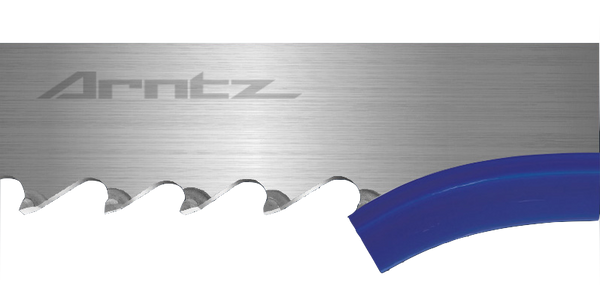

ALU-LINE
CARBIDE-TIPPEDNon-Ferrous/Special Materials
Triple chip design
Carbide grade designed for high abrasion
Developed for high-speed nonferrous applications

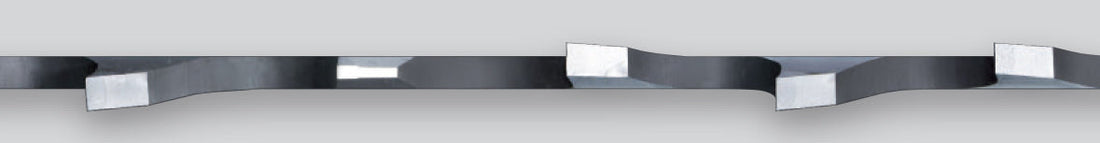

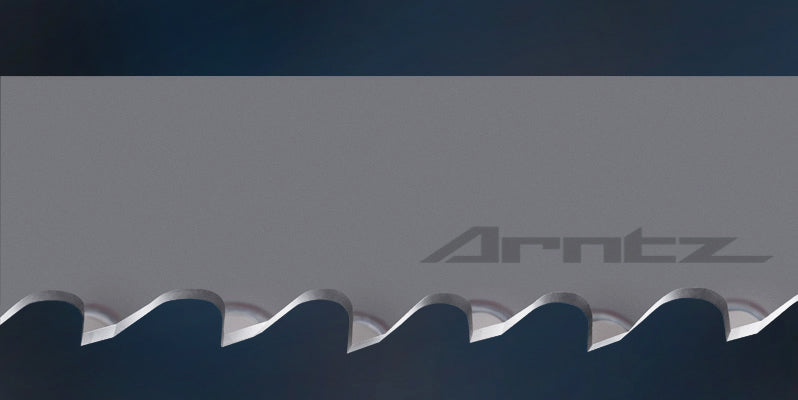

BLACK LINE S
CARBIDE-TIPPEDAerospace & High-Alloy Materials
Robust performance in all machine types.
Modified triple chip geometry combined with set teeth
Wide kerf to create excellent cut stability
Robust performance in all machine types
SPRINT PRO
M51 BI-METALAerospace & High-Alloy Materials
Arntz SPRINT-PRO (Article 531) M51 bi-metal bandsaw blade with classic tooth geometry for difficult materials. Custom welded to your machine's exact loop length at our Hamilton, Ontario facility. Available in 6 widths from 27×0.90mm (1"×.035") to 80×1.60mm (3"×.063") with variable tooth pitch options.

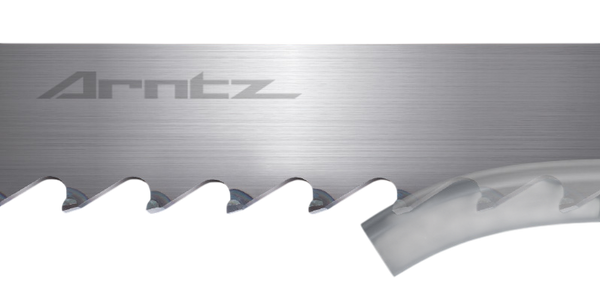

STONE-LINE RT
CARBIDE-TIPPEDStone Applications
The master for hard and abrasive construction materials like solid, engineered, and perforated bricks. The master for hard and abrasive construction materials like solid, engineered, and perforated bricks. Vibration-free cutting with reduced force required due to high-performance, precision-ground tooth geometry. Perfect cutting results.

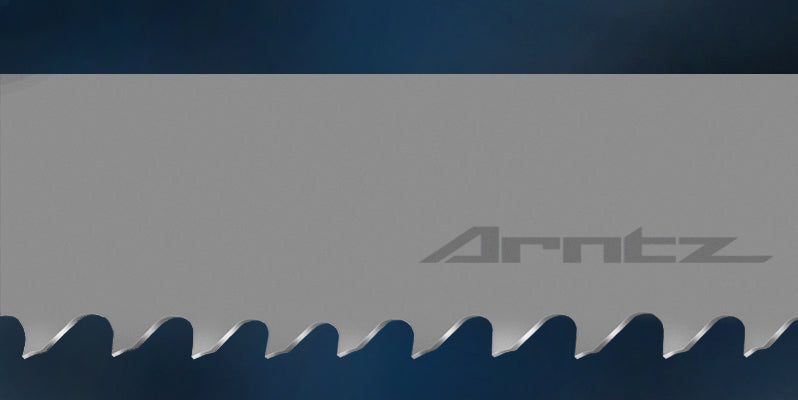

X-FIT MAX
M42 BI-METALStructural Steel & Profiles
The all-rounder with extra wide set ensures a long service life thanks to its stable tooth shape, even in bundle cutting with increased chip volume
The powerhouse for machining large profiles and beams
Extended blade life due to robust tooth design even in bundle cutting with chip nests
Extra wide set prevents jamming in materials with high residual stress
X-PRO
M51 BI-METALStructural Steel & Profiles
The Arntz X-PRO (Article 557) is a premium M51 bi-metal bandsaw blade engineered for cutting structural steel profiles, solid rounds, square bar stock, special alloy steels, bundled tubing, and structural beams. Made in Germany with a powder metallurgically produced M51 high-speed steel cutting edge on a specially alloyed spring steel backing.
M51 HSS Cutting Edge — maintains hardness at higher cutting temperatures than standard M42, preventing premature tip dulling
Enhanced Wear Resistance — M51 edge creates exceptional hardness for longer blade life in heavy structural and fabrication cutting
Improved Edge Retention — consistent, high-quality cuts over extended periods with fewer blade changes
Versatile Profile Cutting — handles solid rounds, squares, special alloys, bundled tubes, beams, channels, and angles
Available in 41mm, 54mm, and 67mm widths with 2/3 and 3/4 TPI variable tooth pitch. Every blade is custom loop-welded to your machine's exact length at our Hamilton, Ontario facility. Call 1-800-957-2690 for expert blade selection advice.
X-PRO MAX
M51 BI-METALStructural Steel & Profiles
Arntz X-PRO MAX M51 bi-metal bandsaw blade with extra-heavy set design for steel construction. Custom welded to your machine's exact loop length at our Hamilton, Ontario facility. Available in 54×1.60mm (2"×.063") and 67×1.60mm (2⅝"×.063") with 2/3 and 3/4 TPI.
SILVER-LINE
CARBIDE-TIPPEDNon-Ferrous/Special Materials
The champion with complex multi-clasp geometry for the highest requirements.
Multi-chip design
Developed for fast band speeds
High positive rake angle to increase penetration
SILVER-LINE N
CARBIDE-TIPPEDNon-Ferrous/Special Materials
The expert for surface hardened workpieces.
The expert for surface hardened workpieces
Special blade with negative rake angle
Multi chip geometry for highest cutting performance

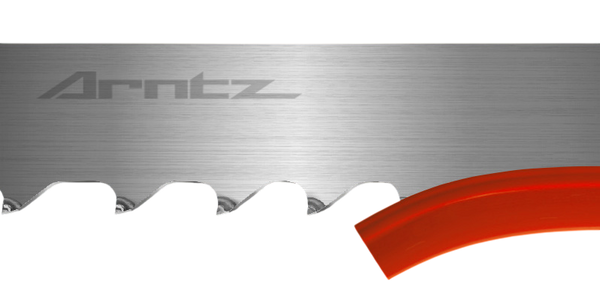

SL-9
CARBIDE-TIPPEDNon-Ferrous/Special Materials
High performance chrome backer with enhanced carbide grade for maximum performance.

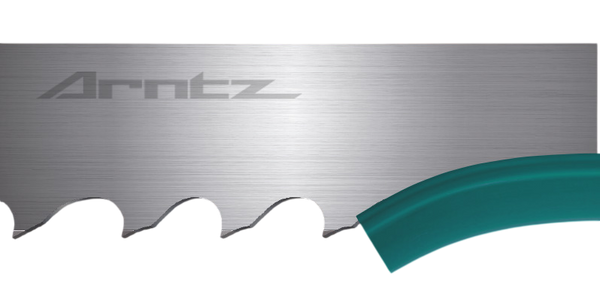

X-CELL
M42 BI-METALAerospace & High-Alloy Materials
The Arntz X-CELL (Article 440) is an M42 bi-metal bandsaw blade with aggressive tooth geometry engineered to improve penetration in work-hardening applications. Variable set and hi-lo tooth pattern for added cutting power while reducing vibration. High chrome premium backer for long blade life. Designed for cutting large blocks, challenging special alloys, and all metals up to HRC 40.
• Aggressive tooth geometry for work-hardening materials• Variable set & hi-lo tooth pattern reduces vibration• High chrome premium backer for extended blade life• M42 HSS tooth tips• 11° hook angle• R-Tech option available (1½"–3" widths)• Custom loop-welded in Hamilton, Ontario
Length: 376 inches
X-CELL PRO
M51 BI-METALAerospace & High-Alloy Materials
High-end Band Saw Blade with tooth tips in M51 quality for increased strength.
Aggressive tooth geometry to improve penetration in work-hardening applications
Variable set and hi-lo tooth pattern for added penetration while reducing vibration
M51 HSS tooth tip for improved wear resistance
