Custom Welded Bandsaw Blades

Robust Triple chip geometry for consistent performance Positive tooth angle with hi-lo tooth design for increased penetration Carbide grade with high resistance

The Arntz X-FIT M42 bi-metal bandsaw blade is engineered for structural steel and demanding cutting applications. Robust tooth geometry for excellent shock resistance on interrupted cuts Modified gullet design to reduce vibration Progressive tooth alignment produces a smooth surface with little burr Custom welded to your exact loop length at Graham Machine, Hamilton ON

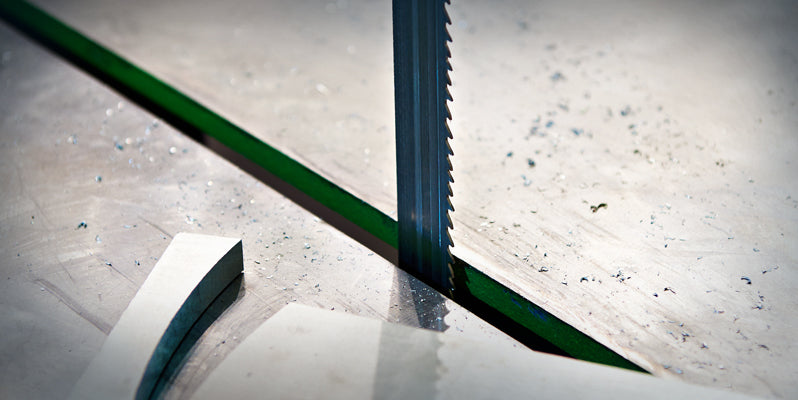

The Arntz CS-1 is a German-engineered carbon bandsaw blade built for everyday workshop cutting. Featuring a flexible band back in pin-point quality with hardened teeth, the CS-1 delivers reliable cuts through mild steel, low-carbon steel, and non-ferrous metals. Available in widths from 3mm (1/8") to 32mm (1-1/4") with tooth pitches from 2 to 32 TPI. Standard tooth (0°) and hook tooth geometry options. Custom loop-welded to your exact blade length at our Hamilton, Ontario facility.

The Arntz Sprint-Plus M42 bi-metal bandsaw blade is a versatile, all-purpose production blade engineered in Germany for consistent cutting performance across a wide range of materials and cross-sections. Classic and variable tooth geometry for solids, tubes, bundles, and profiles M42 high-speed steel tooth tips for long blade life and heat resistance Available in 20mm to 80mm widths with positive and neutral rake options Custom loop-welded to your exact length — ready to install Ideal for steel manufacturing, general fabrication, recycling, and foundry applications.

Arntz X-PRO MAX M51 bi-metal bandsaw blade with extra-heavy set design for steel construction. Custom welded to your machine's exact loop length at our Hamilton, Ontario facility. Available in 54×1.60mm (2"×.063") and 67×1.60mm (2⅝"×.063") with 2/3 and 3/4 TPI.

The Arntz X-PRO (Article 557) is a premium M51 bi-metal bandsaw blade engineered for cutting structural steel profiles, solid rounds, square bar stock, special alloy steels, bundled tubing, and structural beams. Made in Germany with a powder metallurgically produced M51 high-speed steel cutting edge on a specially alloyed spring steel backing. M51 HSS Cutting Edge — maintains hardness at higher cutting temperatures than standard M42, preventing premature tip dulling Enhanced Wear Resistance — M51 edge creates exceptional hardness for longer blade life in heavy structural and fabrication cutting Improved Edge Retention — consistent, high-quality cuts over extended periods with fewer blade changes Versatile Profile Cutting — handles solid rounds, squares, special alloys, bundled tubes, beams, channels, and angles Available in 41mm, 54mm, and 67mm widths with 2/3 and 3/4 TPI variable tooth pitch. Every blade is custom loop-welded to your machine's exact length at our Hamilton, Ontario facility. Call 1-800-957-2690 for expert blade selection advice.

The all-rounder with extra wide set ensures a long service life thanks to its stable tooth shape, even in bundle cutting with increased chip volume The powerhouse for machining large profiles and beams Extended blade life due to robust tooth design even in bundle cutting with chip nests Extra wide set prevents jamming in materials with high residual stress

Robust performance in all machine types. Modified triple chip geometry combined with set teeth Wide kerf to create excellent cut stability Robust performance in all machine types

Arntz SPRINT-PRO (Article 531) M51 bi-metal bandsaw blade with classic tooth geometry for difficult materials. Custom welded to your machine's exact loop length at our Hamilton, Ontario facility. Available in 6 widths from 27×0.90mm (1"×.035") to 80×1.60mm (3"×.063") with variable tooth pitch options.

The champion with complex multi-clasp geometry for the highest requirements. Multi-chip design Developed for fast band speeds High positive rake angle to increase penetration

The expert for surface hardened workpieces. The expert for surface hardened workpieces Special blade with negative rake angle Multi chip geometry for highest cutting performance

High-end Band Saw Blade with tooth tips in M51 quality for increased strength. Aggressive tooth geometry to improve penetration in work-hardening applications Variable set and hi-lo tooth pattern for added penetration while reducing vibration M51 HSS tooth tip for improved wear resistance
