If your shop cuts structural steel — beams, channels, angles, solid rounds, or bundled tubing — you already know that blade life is everything. Downtime for blade changes costs money, and inconsistent cuts create rework. The Arntz X-PRO was built to solve both problems.

What Makes the X-PRO Different?

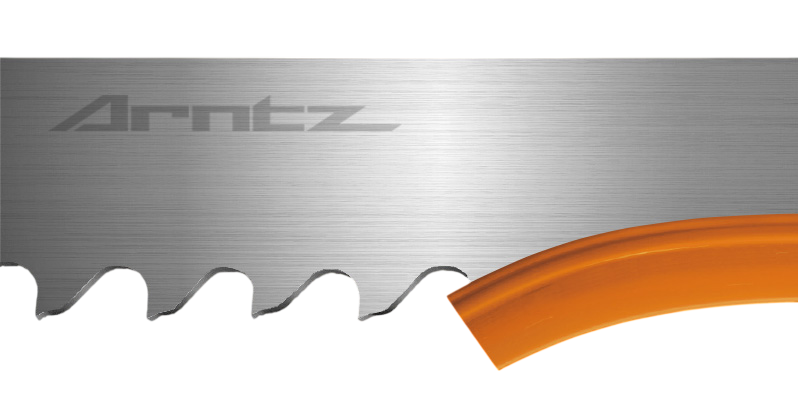

Most bi-metal bandsaw blades use M42 high-speed steel for the cutting edge. The X-PRO uses M51 — a powder metallurgically produced steel that holds its hardness at higher temperatures. In practical terms, that means the tooth tips stay sharp longer, especially when cutting large cross-sections or dense materials that generate more heat at the cut.

Three things set the X-PRO apart from standard M42 blades:

• The M51 edge resists wear significantly longer than M42, which means fewer blade changes per shift
• It holds hardness at elevated cutting temperatures, so you can push feed rates without premature tip dulling
• Edge retention stays consistent over the life of the blade, giving you cleaner cuts from first cut to last

What Should You Cut With It?

The X-PRO is designed for structural steel and fabrication profiles. If you are cutting any of the following, it is worth considering:

• Solid rounds (medium and large cross-sections)
• Square and rectangular bar stock
• Special alloy steels
• Bundled tubing
• Structural beams (I-beams, H-beams, wide flange)
• Steel channels and angles

It sits in the Advanced tier of the Arntz blade lineup — above general-purpose blades like the X-FIT, but designed for shops that need longer run times and better performance on heavier structural work.

How Does It Compare to the X-FIT?

The X-FIT uses M42 steel and covers a broader range of general fabrication work. The X-PRO narrows the focus to structural steel and adds the M51 edge for durability. If you are running a steel service centre or fabrication shop and your current blades are dulling too quickly on beams and heavy sections, the X-PRO is the next step up.

For even heavier structural work with high residual stress — like cutting bundled wide-flange beams — the X-FIT MAX and X-PRO MAX offer extra-wide set tooth designs built for those demanding applications.

Both blades are available in similar width ranges. The X-PRO comes in 41mm, 54mm, and 67mm widths with 2/3 and 3/4 TPI variable tooth pitch across all sizes.

Available Sizes

• 41 × 1.30 mm (1-1/2" × .050") — 2/3 and 3/4 TPI
• 54 × 1.30 mm (2" × .050") — 2/3 and 3/4 TPI
• 54 × 1.60 mm (2" × .063") — 2/3 and 3/4 TPI
• 67 × 1.60 mm (2-5/8" × .063") — 2/3 and 3/4 TPI

Custom Welded in Hamilton, Ontario

Every Arntz X-PRO blade we sell at Graham Machine Sales is custom loop-welded in our Hamilton facility to your machine's exact length. We do not sell stock lengths. You give us your loop measurement, and we weld it to spec — typically shipping within one to two business days.

We also service and repair industrial band saw machines across Ontario. If you need help selecting the right blade width and TPI for your material and machine, call us at 1-800-957-2690 and our team will walk you through it.

Browse the full Arntz blade lineup → or configure and order the X-PRO →
