Choosing the wrong bandsaw blade for structural steel doesn't just waste money — it costs you time, ruins cut quality, and burns through blades faster than necessary. Whether you're cutting I-beams, H-beams, angle iron, channel, or bundled tubing, the blade you choose needs to handle the unique challenge of interrupted cuts.

Here's what to consider.

Why Structural Steel Is Different

Unlike solid bar stock where the blade stays in constant contact with the material, structural shapes create interrupted cuts. The blade teeth repeatedly enter and exit the material as they pass through flanges, webs, and open sections. This impact loading chips and breaks teeth on blades that aren't designed for it.

You need a blade with shock-resistant tooth geometry — not just any bi-metal blade off the shelf.

Bi-Metal vs. Carbon Steel

For structural steel, carbon steel blades aren't worth the savings. They dull quickly and can't handle the heat generated in harder steels. A bi-metal blade combines a flexible spring steel backing with M42 high-speed steel tooth tips. The backing flexes without cracking, while the M42 tips resist extreme temperatures and stay sharp far longer.

For structural fabrication, bi-metal is the minimum. The question is which bi-metal blade is optimized for your application.

Choosing the Right Tooth Pitch

Tooth pitch (measured in TPI — teeth per inch) is the most critical decision after blade type. The rule of thumb: you want at least 3 teeth engaged in the material at all times.

• 2/3 TPI — Heavy structural beams, large solid sections, thick-walled tubing
• 3/4 TPI — Medium structural profiles, general fabrication
• 5/7 TPI — Thinner walls, smaller tubing, lighter profiles
• 8/11 TPI — Thin-wall tubing, small cross-sections

Too few teeth in the cut means individual teeth take excessive load and chip. Too many teeth means clogged gullets and poor chip evacuation. When in doubt, go coarser — it's more forgiving with structural shapes.

Choosing the Right Blade Width

Blade width is determined by your machine, not your material. Check your band saw manufacturer's specifications for the maximum blade width your machine accepts. Wider blades are more rigid and produce straighter cuts, which matters for structural work where accuracy counts.

Common widths for structural cutting: 34mm (1-1/4"), 41mm (1-1/2"), and 54mm (2").

What We Recommend

For structural fabrication shops and steel service centres, we recommend the Arntz X-FIT M42 bi-metal bandsaw blade. It's purpose-built for exactly this application — the proprietary tooth geometry absorbs the shock of interrupted cuts through beams, channels, and bundled materials without chipping. The modified gullet design dampens vibration and produces a smooth, burr-free surface finish.

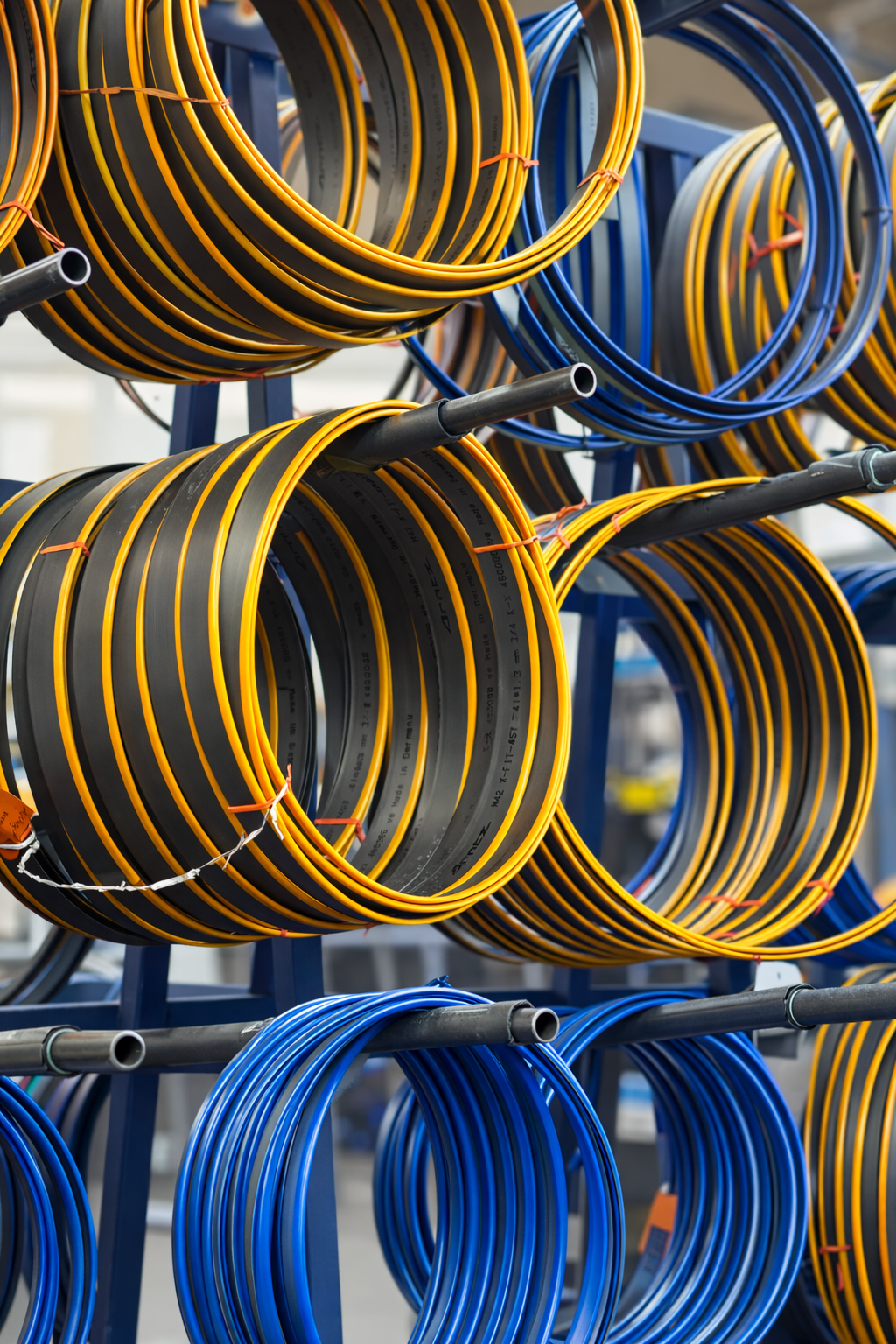

We custom weld every X-FIT blade in-house at our Hamilton facility to your machine's exact loop length. No stock lengths, no compromises.

Configure and order your X-FIT blade here

Need Help Choosing?

Call us at 1-800-957-2690. Tell us your machine make/model and what you're cutting, and we'll recommend the right blade width, tooth pitch, and feed/speed settings. We've been helping fabrication shops across Ontario get the most out of their saws for decades.
