If you run a steel service centre or structural fabrication shop, you already know: not every bandsaw blade can handle heavy structural steel. Wide-flange beams, thick-walled I-beams, and bundled sections put enormous stress on a blade — and using the wrong one means short blade life, crooked cuts, and costly downtime.

Here's what makes structural steel so demanding on bandsaw blades, what to look for when choosing the right one, and why we recommend the Arntz X-FIT MAX for shops cutting the heaviest profiles.

Why Heavy Structural Steel Destroys Ordinary Blades

Cutting a wide-flange beam isn't like cutting solid bar stock. The blade passes through constantly changing cross-sections — thick flanges, thin webs, then thick flanges again. Each transition creates an interrupted cut that shocks the teeth. On top of that, large structural profiles carry high residual stress from the rolling process. That stress gets released as the blade cuts through, causing the material to clamp down on the blade body.

The result? Blade jamming, premature tooth stripping, and wandering cuts. And when you're cutting bundled beams — multiple sections banded together — the problem multiplies. Chips have nowhere to go, the blade heats up, and you burn through blades far faster than you should.

What to Look for in a Structural Steel Bandsaw Blade

Not every bi-metal blade is built for this kind of work. Here are the three features that separate a structural steel blade from a general-purpose one:

1. Extra Wide Tooth Set

The tooth set — how far teeth are bent left and right from the blade body — determines the width of the cut channel (kerf). A wider set creates more clearance for chips to escape and, critically, prevents the blade from binding when residual stress causes the material to pinch. For heavy structural work, look for a set angle in the 5°–7° range.

2. Robust Tooth Geometry

The constant interrupted cuts through beam flanges and webs hammer the teeth on every stroke. Standard tooth profiles chip and break under this kind of shock loading. A blade designed for structural steel uses a heavier, more stable tooth form that absorbs impact without fracturing.

3. M42 High-Speed Steel Cutting Edge

Cobalt-alloyed M42 HSS tooth tips maintain their hardness at the elevated temperatures that structural cutting generates. Combined with a flexible spring steel backing, this gives you a blade that stays sharp through long cuts without cracking.

The Arntz X-FIT MAX: Built for the Heaviest Structural Cutting

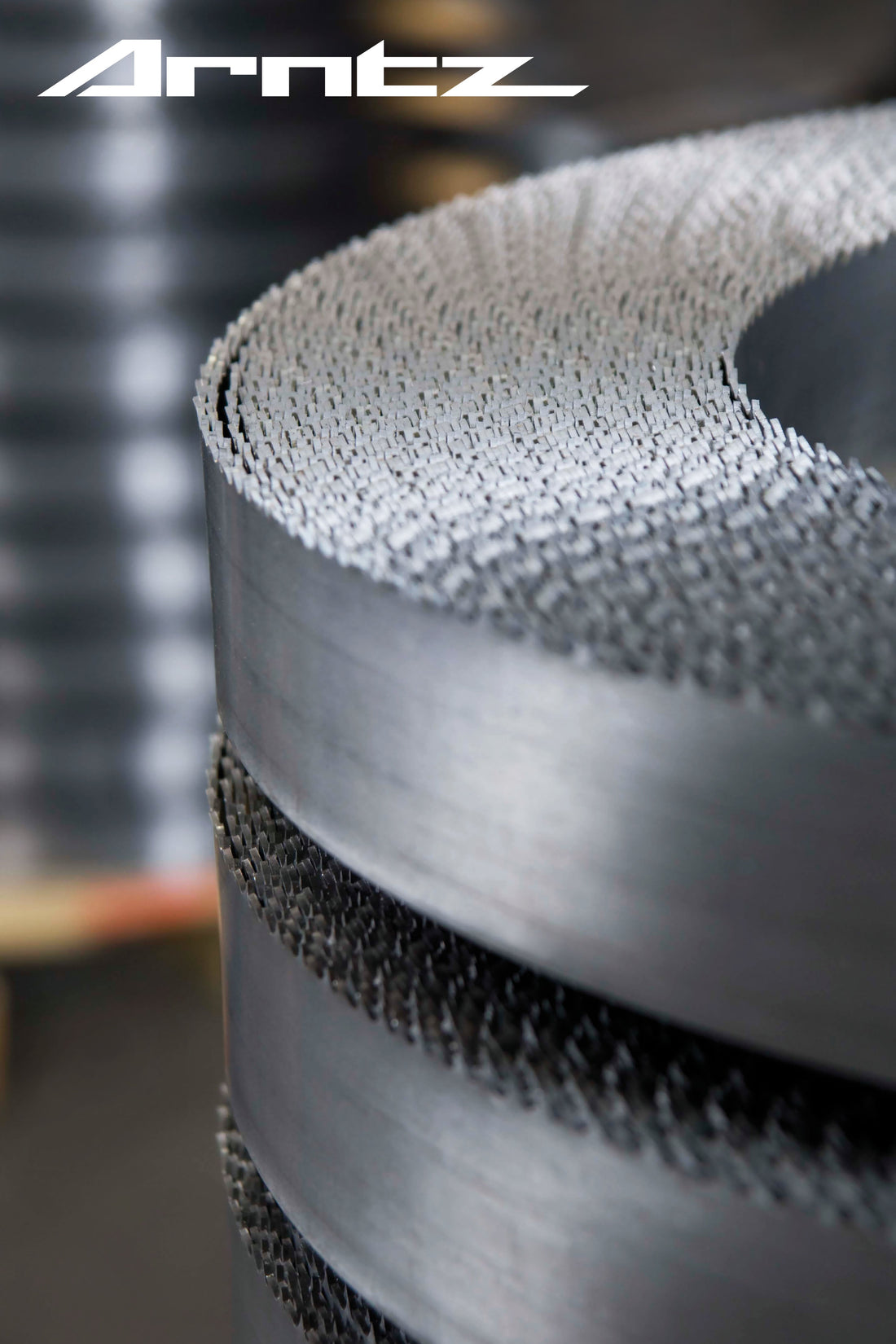

The Arntz X-FIT MAX (Article 458) is purpose-built for exactly this type of work. It's an M42 bi-metal blade with an extra wide tooth set and robust tooth geometry — designed from the ground up for wide-flange beams, heavy-walled I-beams and H-beams, and bundled structural steel.

What sets it apart from general structural blades:

• Extra wide set (5°–7°) prevents jamming in materials with high residual stress
• Robust tooth design delivers extended blade life even in bundle cutting with high chip volumes
• M42 HSS teeth on spring steel backing — the standard bi-metal combination for heavy industrial cutting
• Engineered and manufactured in Germany by Arntz, a company with over 230 years of sawing expertise

Available Widths and Tooth Pitches

The X-FIT MAX comes in four width options to match your machine and material size:

• 34 × 1.10 mm (1-1/4" × .042") — 3/4 TPI
• 41 × 1.30 mm (1-1/2" × .050") — 2/3, 3/4, or 4/6 TPI
• 54 × 1.60 mm (2" × .063") — 2/3 or 3/4 TPI
• 67 × 1.60 mm (2-5/8" × .063") — 2/3 or 3/4 TPI

General rule: Use a coarser pitch (2/3 TPI) for the largest profiles where you need maximum chip clearance, and a finer pitch (3/4 or 4/6 TPI) for smaller beams where you want a smoother cut. You always want at least three teeth engaged in the material at any point in the cut.

Tips for Getting the Most Out of Your Structural Steel Blade

Break In Your Blade

New bi-metal blades have razor-sharp tooth tips that can micro-chip if you run them at full feed rate right away. Start your first few cuts at roughly half your normal feed pressure and moderate speed. This rounds the tooth tips slightly and dramatically extends blade life.

Match TPI to Cross-Section

A common mistake is running too fine a pitch on large beams. If chips can't clear the gullet fast enough, they pack in and overheat the blade. For wide-flange beams over 12 inches, a 2/3 TPI variable pitch is usually the right call.

Watch Your Feed Pressure on Bundles

Bundle cutting generates more chips per stroke than single-piece cutting. Back off the feed pressure slightly and make sure your coolant flow is reaching the cut. The X-FIT MAX's extra wide set helps here — the wider kerf gives chips more room to evacuate — but coolant delivery is still critical.

Custom Welded to Your Machine

Every X-FIT MAX blade we sell is custom loop-welded in-house at our Hamilton, Ontario facility to your machine's exact loop length. No stock lengths — each blade is made to order with fast turnaround, typically shipping within 1–2 business days.

Configure your X-FIT MAX blade →

Not sure which width or TPI is right for your application? Call us at 1-800-957-2690 — we'll recommend the best setup for your machine and material.
